Disaggregated-encoder

Why disaggregated-encoder?

A disaggregated encoder runs the vision-encoder stage of a multimodal LLM in a process that is separate from the pre-fill / decoder stage. Deploying these two stages in independent vLLM instances brings three practical benefits:

1. Independent, fine-grained scaling

   • Vision encoders are lightweight, while language models are orders of magnitude larger.
   • The language model can be parallelised without affecting the encoder fleet.
   • Encoder nodes can be added or removed independently.

2. Lower time-to-first-token (TTFT)

   • Language-only requests bypass the vision encoder entirely.
   • Encoder output is injected only at required attention layers, shortening the pre-fill critical path.

3. Cross-process reuse and caching of encoder outputs

   • In-process encoders confine reuse to a single worker.
   • A remote, shared cache lets any worker retrieve existing embeddings, eliminating redundant computation.

Design doc: https://docs.google.com/document/d/1aed8KtC6XkXtdoV87pWT0a8OJlZ-CpnuLLzmR8l9BAE

---

Usage

The current reference pathway is ExampleConnector. The ready-to-run scripts below show the workflow:

1 Encoder instance + 1 PD instance: examples/online_serving/disaggregated_encoder/disagg_1e1pd/

1 Encoder instance + 1 Prefill instance + 1 Decode instance: examples/online_serving/disaggregated_encoder/disagg_1e1p1d/

---

Development

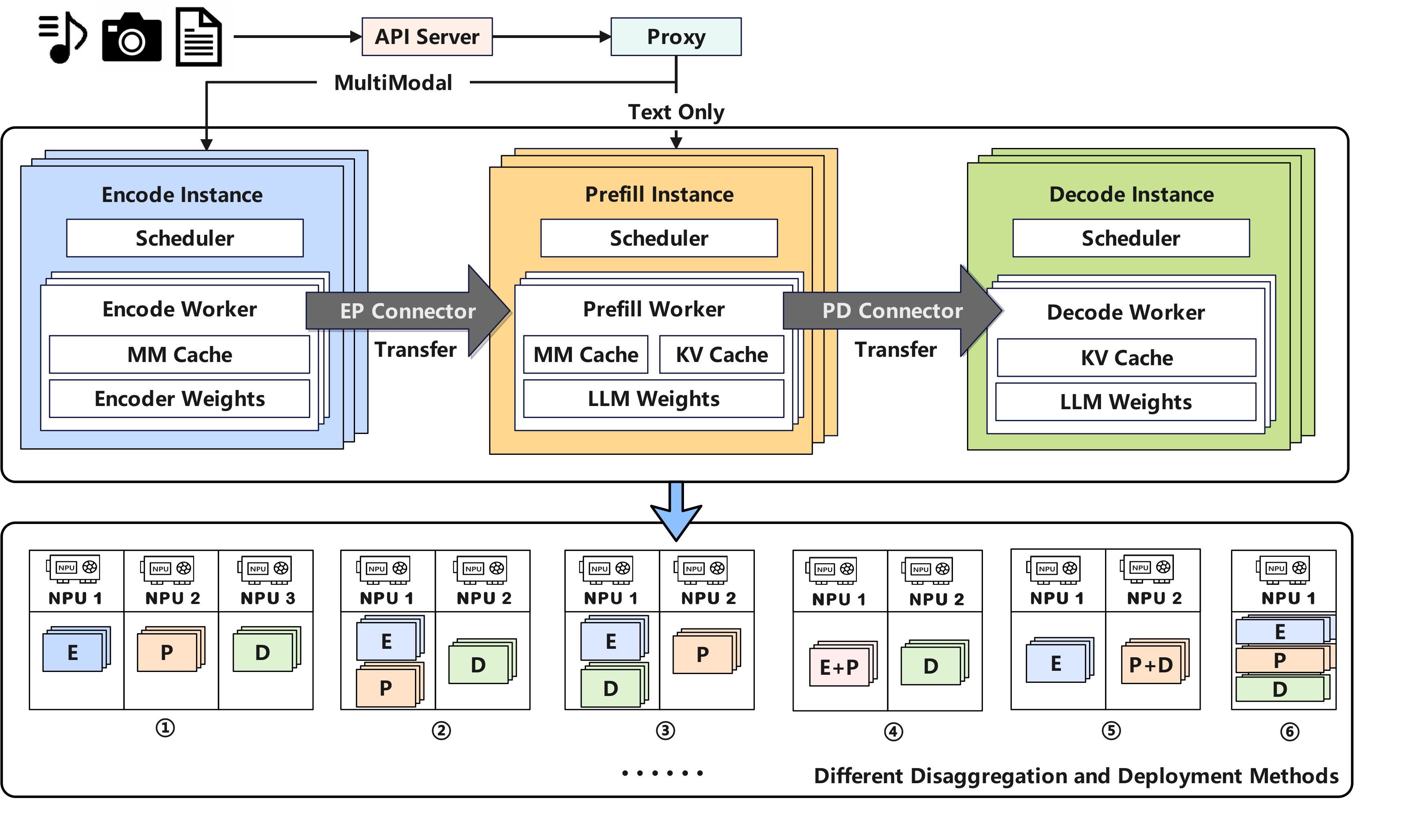

Disaggregated encoding is implemented by running two parts:

• Encoder instance – a vLLM instance to perform vision encoding.
• Prefill/Decode (PD) instance(s) – runs language pre-fill and decode.
  • PD can be in either a single normal instance with (E + PD) or in disaggregated instances with (E + P + D)

A connector transfers encoder-cache (EC) embeddings from the encoder instance to the PD instance.
All related code is under vllm/distributed/ec_transfer.

Key abstractions

• ECConnector – interface for retrieving EC caches produced by the encoder.

  • Scheduler role – checks cache existence and schedules loads.
  • Worker role – loads the embeddings into memory.

• EPD Load Balancing Proxy -

  • Multi-Path Scheduling Strategy - dynamically diverts the multimodal request or text requests to the corresponding inference path
  • Instance-Level Dynamic Load Balancing - dispatches multimodal requests based on a least-loaded strategy, using a priority queue to balance the active token workload across instances.

We create the example setup with the MooncakeLayerwiseConnector from vllm_ascend/distributed/kv_transfer/kv_p2p/mooncake_layerwise_connector.py and refer to the examples/disaggregated_prefill_v1/load_balance_proxy_layerwise_server_example.py to facilitate the kv transfer between P and D. For step-by-step deployment and configuration of Mooncake, refer to the following guide:
https://docs.vllm.ai/projects/ascend/en/latest/tutorials/features/pd_disaggregation_mooncake_multi_node.html

For the PD disaggregation part, when using MooncakeLayerwiseConnector: The request first enters the Decoder instance,the Decoder triggers a remote prefill task in reverse via the Metaserver. The Prefill node then executes inference and pushes KV Cache layer-wise to the Decoder, overlapping computation with transmission. Once the transfer is complete, the Decoder seamlessly continues with the subsequent token generation. docs/source/developer_guide/Design_Documents/disaggregated_prefill.md shows the brief idea about the disaggregated prefill.

Limitations

• Disable --mm-processor-cache-gb 0 if you want to use cross-process caching

• For the PD disaggregation part, refer to the limitations of PD decomposition
